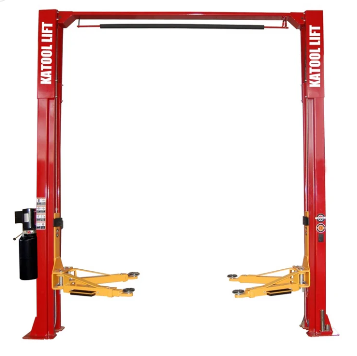

KT-M110 Two-Post Clear-Floor Lift Specs

Specification	Detail
Model	Katool KT-M110 Two-Post Clear-Floor Lift
Rated Capacity	11,000 lb (5,000 kg)
Max. Lifting Height	70.75 in / 1,800 mm
Minimum Lift Pad Height	4.25 in / 110 mm
Overall Height	141.25 in / 3,587 mm
Overall Width	142.25 in / 3,614 mm
Inside Column Width	110.25 in / 2,800 mm
Outside Column Width	128 in / 3,250 mm
Drive-Through Clearance	94.5 in / 2,400 mm
Arm Reach (Front/Rear)	Min: 30.75 in / Max: 50.5 in (2-stage)
Motor Power	220 V / 60 Hz / 1 PH / 2.2 kW
Net Weight	~1,367 lb / 620 kg
Certifications	CE Certified (115% dynamic / 150% static)
Package Dims	112"x19"x38" (Inches)

Installation Warning: Concrete must be a minimum of 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation. Verify slab strength before installation.
