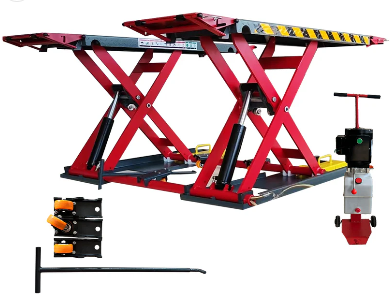

KT-X77 Mid Rise Scissor Lift Specs

Specification	Details
Model	KT-X77
Product	Mid-Rise Scissor Car Lift
Lifting Capacity	~7,000 lbs (3,175 kg) – suitable for cars, SUVs, light trucks
Maximum Lifting Height	~39.37″ (~1,000 mm)
Minimum Height (Lowered)	~4.33″ (~110 mm)
Platform Length	~78″ (~1,980 mm)
Overall Width	~63″ (~1,600 mm)
Load Type	Universal – drive-on scissor lift
Material	Heavy-duty alloy steel construction
Power (Typical Variants)	Electric 110 or 220V (please call us to specify)
Operation	Electric lift with safety release mechanism
Shipping Weight of Unit	~1,300+ lbs (≈590+ kg) approx based on similar spec styles
Applications	Routine maintenance, oil changes, brake service, under-car work
Safety Features	Built-in locking/safety release system
Package Dims	(2 Crates)                                    Lift: 78"x66"x11" (1,080 Lbs)        Pump: 29"x14"x15" (75 Lbs)
