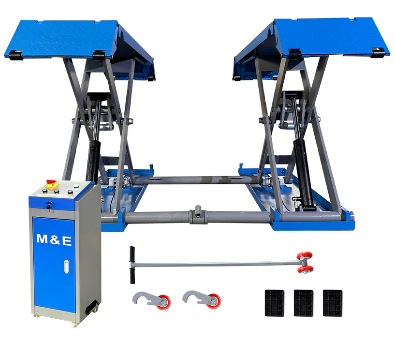

ME-8XP Mid Rise Scissor Lift Specs

Feature	Specification
Model	ME-8XP Mid-Rise Scissor Lift
Max Lifting Capacity	7,700 lbs (3,492 kg)
Max Lifting Height	~38–41″ / 965–1050 mm
Minimum Height	~4.3″ / 110 mm
Operation	Pneumatic safety release
Drive-Up Ramps	Lock design for extended platform
Mobility	Casters Included
Control System	24 V safe control with height limit switch
Hydraulic System	AW32 or AW46
Suitability	Cars, SUVs, light trucks
Package Dims	(2 Crates)                                     Lift: 78"x63"x9" (1,190 Lbs)     Pump: 17"x15"x43" (132 Lbs)
