KT-M120 Two-Post Clear-Floor Lift Specs

Specification	Detail

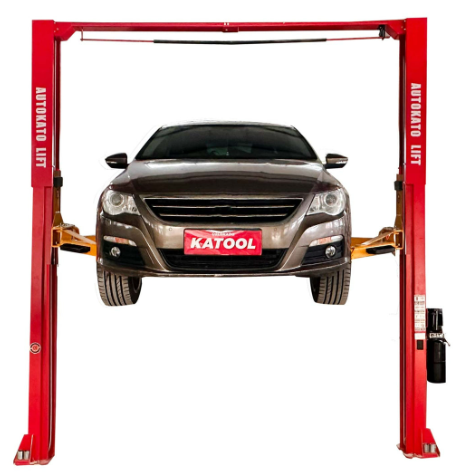

Model	Katool KT-M120 Two-Post Vehicle Lift
Rated Capacity	12,000 lb / 5,500 kg
Max. Lifting Height	~72 in / 1,830 mm
Minimum Pad Height	~4.5 in / 115 mm
Overall Height	~145 in / 3,680 mm
Overall Width	~144 in / 3,660 mm
Inside Column Width	~112 in / 2,845 mm
Drive-Through Clearance	~95 in / 2,410 mm
Arm Reach (Front/Rear)	Min: ~31 in / Max: ~51 in (2-stage)
Motor / Power	220 V / 60 Hz / 1 PH (110 V available)
Net Weight	~1,500 lb / 680 kg
Certifications	CE / ISO-standard load testing compliance (where applicable)
Package Dims	112"x19"x38" (Inches)

Installation Warning: Concrete must be a minimum of 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation. Verify slab strength before installation.
