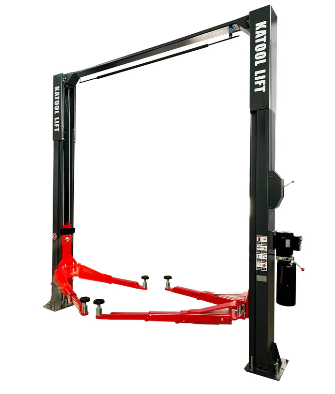

KT-AS110D Asymmetrical Two-Post Clear-Floor Lift Specs

Lifting Capacity	11000 lbs. (4990KG )
Max. Lifting Height	70.75" / 1800mm
Min. Height	3.74" / 95mm
Height Overall	141.25" / 3587mm
Width Overall	134.65" / 3420mm
Outside Columns	120.4" / 3058mm
Inside Columns	109.37" / 2778mm
Drive Thru Clearance	99.61" / 2530mm
Motor	220VAC/60HZ/1PH
Net Weight	1323lbs / 600KG
Package Dims	112"x19"x38" (Inches)

Installation Warning: Concrete must be a minimum of 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation. Verify slab strength before installation.
