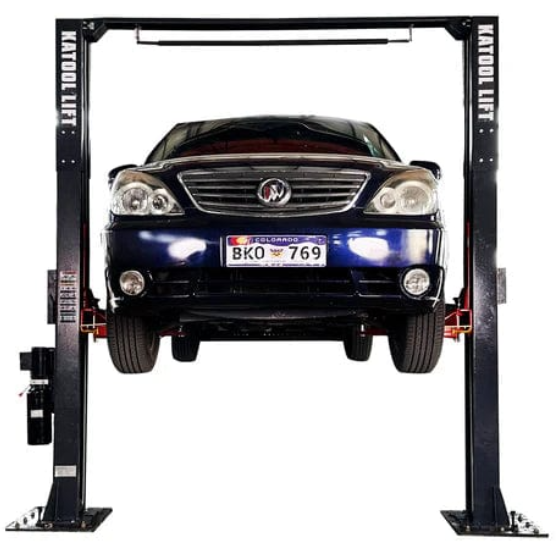

KT-AM120SD Two-Post Clear-Floor Lift Specs

Specification	Imperial	Metric
Lifting Capacity	12,000 lbs	5,500 kg
Max. Lifting Height	70.87 in	1,800 mm
Min. Height	4.3 in	110 mm
Overall Height	144 in	3,650 mm
Overall Width	131.5 in	3,340 mm
Outside Column Width	120.4 in	3,058 mm
Inside Column Width	111 in	2,820 mm
Drive-Thru Clearance	95 in	2,400 mm
Front Arm Reach (Min)	33.5 in (2-stage)	850 mm
Front Arm Reach (Max)	55.5 in (2-stage)	1,410 mm
Rear Arm Reach (Min)	33.5 in (2-stage)	850 mm
Rear Arm Reach (Max)	45 in (2-stage)	1,135 mm
Motor	220VAC / 60Hz / 1PH / 2.2 kW	Same
Net Weight	1,369 lbs	621 kg
Package Dims	112"x18"x36" (Inches)

Installation Warning: Concrete must be a minimum of 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation. Verify slab strength before installation.
