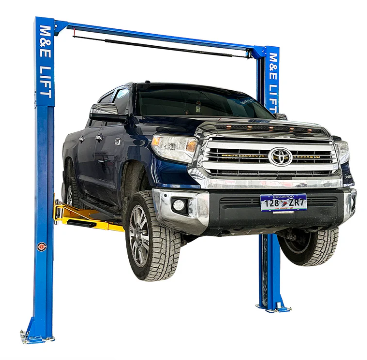

ME-LM110S Two-Post Clear-Floor Lift Specs

Specification	Value
Lifting Capacity	11,000 lbs (5,000 kg)
Max. Lifting Height	70.87 in / 1800 mm
Min. Height	4.25 in / 110 mm
Overall Height	141.25 in / 3587 mm
Overall Width	134.65 in / 3420 mm
Outside Column Width	128 in / 3250 mm
Inside Column Width	110.25 in / 2800 mm
Drive-Thru Clearance	98.82 in / 2510 mm
Front Arm Reach (Min)	30.75 in / 780 mm (2-stage)
Front Arm Reach (Max)	50.5 in / 1280 mm (2-stage)
Rear Arm Reach (Min)	30.75 in / 780 mm (2-stage)
Rear Arm Reach (Max)	50.5 in / 1280 mm (2-stage)
Motor	220VAC / 60Hz / 1PH / 2.2 kW
Net Weight	1367 lbs / 620 kg
Package Dims	112"x18"x36" (Inches)

Installation Warning: Concrete must be a minimum of 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation. Verify slab strength before installation.

Manual link: https://cdn.shopify.com/s/files/1/0646/1217/2012/files/2_Post_Lift_Operation_and_Installation_Manual_for_ME-LM110S.pdf?v=1755171260
