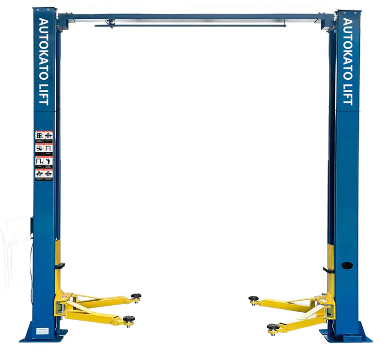

AK-M115S Two-Post Clear-Floor Lift Specs

Specification	Value
Model	M115S
Lifting Capacity	11,000 lb (5,000 kg)
Maximum Lifting Height (under pads)	70.75 in
Minimum Pad Height	4.25 in
Overall Height	141.25 in
Overall Width	142.25 in
Drive-Thru Clearance	94.5 in
Arm Reach	Front: 30.75 in / Rear: 30.75–50.5 in
Motor Power	2.2 kW (220 V, 60 Hz)
Net Weight (excluding accessories)	Approx. 1,350 lb (620 kg)
Package Dims	112"x18"x36" (Inches)

Installation Warning: Concrete must be a minimum of 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation. Verify slab strength before installation.
