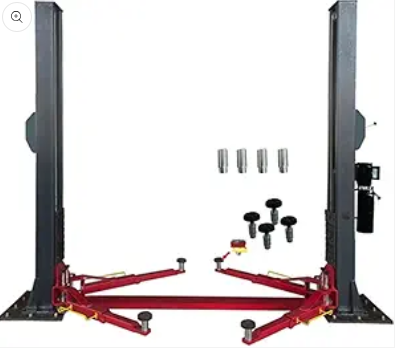

KT-H120D Two Post Vehicle Lift Specs

Specification	Value
Model	Katool H120D
Lifting Capacity	12,000 lbs
Lock Release	Single Point
Max Lifting Height	74.8 in
Column Height	110.9 in
Drive-Thru Clearance	110.2 in
Column Width	124.8 in
Base Plate Design	Yes
Arm Style	Symmetric
Cable Thickness	3/8 in
Support Adaptor	Extended (adds 4 in)
Motor	4.0 HP, 220V / 60Hz / 1PH
Item Weight	1,379 Lbs
Package Dims	112"x12"x29"

Installation Warning: Concrete must be a minimum of 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation. Verify slab strength before installation.
