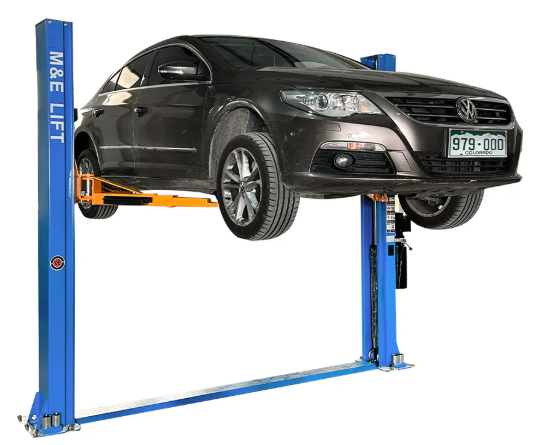

ME-H1000 Two Post Vehicle Lift Specs

Lifting Capacity	10000lbs.(4500KG)
Max. Lifting Height	70.8"/1800mm
Min. Height	3.9"/100mm
Height Overall	110.9"/2818mm
Width Overall	140.4"/3565mm
Outside Column	124.8"/3170mm
Inside Column	110.2"/2800mm
Dirve-Thru Clearance	98.4"/2500mm
Front Arm Reach(Min)	29.5"/750mm(2 stages)
Front Arm Reach (Max)	46"/1170mm(2 stages)
Rear Arm Reach(Min)	35.4"/900mm(2 stages)
Rear Arm Reach(Max)	58.2"/1480mm(2 stages)
Motor	220VAC/60HZ/1PH/2.2KW
Net Weight	570KG (1,280 Lbs)
Package Dims	112"x18"x36" (Inches)

Installation Warning: Concrete must be a minimum of 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation. Verify slab strength before installation.
