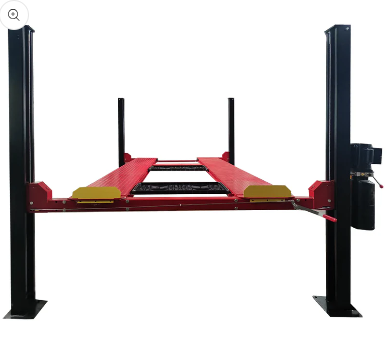

| Model | KT-4H950 |
| Lift Type | 4-Post Storage / Parking Lift |
| Lifting Capacity | 9,500 lbs (4.3 T) |
| Maximum Lifting Height | ~84.5″ (~79″ clearance) |
| Lifting Time | ~50 seconds to full height |
| Overall Length | 189″ (with baseplates) |
| Overall Width | 113″ |
| Width Between Columns | 99″ |
| Overall Height | ~97″ (varies by setup) |
| Motor | 110 V, 3.0 HP (30 A breaker) |
| Power Requirements | Standard single-phase outlet |
| Runway Surface | Diamond-plate non-skid platforms |
| Safety System | Multi-level mechanical locks |
| Included Accessories | Casters, aluminum ramps. *jack tray, drip trays (*Narrow setting only) |
| Concrete Requirement | Minimum ~4″ thickness at 3000 PSI (recommended) |
| Item Weight | 2,095 Lbs |
| Package Dims | 186"x30"x23" (Inches) |
