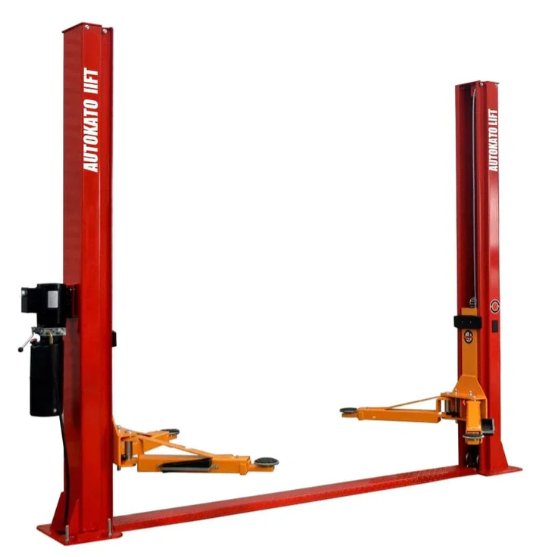

KT-H100 Two Post Lift Specs

Specification	Detail
Model	Katool KT-H100 Two-Post Lift
Lifting Capacity	10,000 lb / 4,500 kg
Max. Lifting Height	70.75 in / 1,800 mm
Minimum Pad Height	4.25 in / 110 mm
Overall Height	110.25 in / 2,800 mm
Overall Width	142.25 in / 3,614 mm
Inside Column Width	110.25 in / 2,800 mm
Drive-Through Clearance	94.5 in / 2,400 mm
Arm Reach (Front/Rear)	Min: 30.75 in / 780 mm / Max: 50.5 in / 1,280 mm (2-stage)
Motor / Power	220 VAC / 60 Hz / 1 PH / 2.2 kW (110 V optional for $190)
Net Weight	~1,256 lb / 570 kg
Safety Certifications	CE Approved (115% dynamic / 150% static load tested)
Package Dims	112"x19"x38" (Inches)

Installation Warning: Concrete must be a minimum of 5.9 in (150 mm) thick with a 3000 PSI rating for safe operation. Verify slab strength before installation.
