| Specification | Detail |
|---|---|

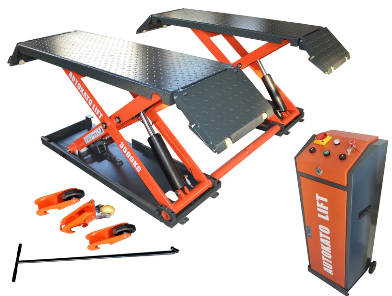

| Model | Katool X85 Mid-Rise Scissor Lift |
| Rated Lifting Capacity | 8,000 lb / 3,500 kg |
| Maximum Lifting Height | 40.15 in / 1,020 mm |
| Minimum Height (Lowered) | 4.25 in / 110 mm |
| Platform Length | 57 in / 1,450 mm |
| Overall Length | 83.5 in / 2,120 mm |
| Platform Width | 20.5 in / 520 mm |
| Overall Width | 76.75 in / 1,950 mm |
| Motor / Power | 110 V or 220 V AC, 60 Hz, 1 PH |
| Control System | 24 V safe lock control system |
| Safety Release | Electric safety release |
| Certification | CE Approved (115% dynamic / 150% static tested) |
| Additional Features | Composite rubber lifting blocks included, height limit switch, self-lubricated bushings & bearings, portable mobile kit included |
| Net Weight | Approx. 1,213 lb / 550 kg |
| Package Dims | (2 Crates) Lift: 76"x62"x8" (1,074 Lbs) Pump: 43"x23"x18" (200 Lbs) |
